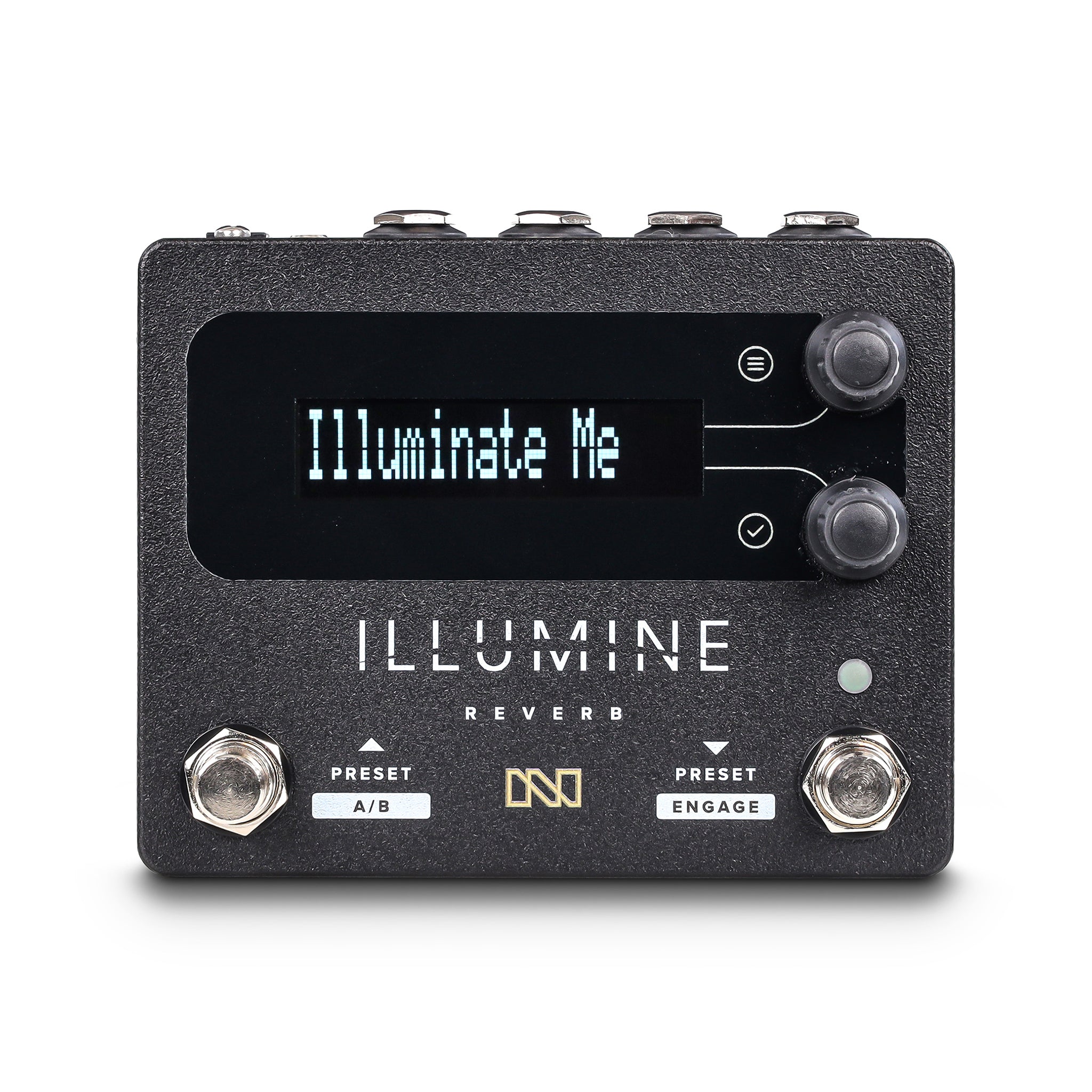

The Ultimate Reverb Machine

ILLUMINE packs 20 studio-quality reverbs, 50 presets, MIDI and powerful expression control in a low-power, pedalboard-friendly package with top jacks. Regardless of your instrument or style of music, ILLUMINE has the flexibility and tone you desire. Your creativity is the only limit.

• Features
  • 20 stellar stereo reverb effects (with v2 firmware) covers all of your reverb needs.
  • 50 professionally-crafted factory presets for superb tones right out of the box.
  • 50 user presets to customize and save your favorite settings.
  • MIDI input & thru/out. Controller mode replaces a simple MIDI controller.
  • Powerful, flexible expression control engine. Use an external expression pedal or the built-in A/B switch with adjustable transition times.
  • Analog dry signal for low noise and zero latency maintains the integrity of your source tone.
  • Adjustable gain structure works with instrument or line-level inputs.
  • High contrast, wide viewing angle display is easy to read from a distance.
  • Small footprint with top jacks, ILLUMINE is easy to incorporate into your pedalboard.
  • Power with a standard 9V @ 100mA pedal power supply (not included). No need to run a separate power adapter or free up a high-current power port.
  • Manufactured locally in Orange County, California. Family owned and operated, Neunaber Audio is dedicated to bringing you the highest quality audio effects on the market.
• Effects

  The ILLUMINE is packed with 20 versatile reverb effects:

  • Wet Plugin – As close to the Neunaber Wet Reverberator software plugin we can get in pedal form. An open sound that works well with many instruments.
  • Wet v3 – The popular W3T effect in the Immerse Mk II.
  • Wet v2 – The Wet effect in Expanse and the Immerse Mk I.
  • Wet v1 – The original reverb from the Wet Stereo Reverb pedal. Like all of the Wet Reverb algorithms, it is known for its open, natural sound, which complements the source signal without masking it.
  • Room – Emulating a smaller acoustic space with a wide stereo sound field.
  • Hall – Emulating the sound of a well-designed concert hall, this reverb is large and expansive.
  • Plate – Bright and diffuse like a studio plate reverb.
  • Vintage Digital – Designed in the style of a vintage rack unit, this reverb sounds diffuse and synthetic, but not metallic like a plate.
  • Spring – A spring reverb consists of springs suspended between transducers, and its sound has a distinctive “twerp.”
  • Gated Plate – This is our Plate reverb with infinite depth and gated by the input level.
  • Reverse – Emulating the process of reversing the dry signal, adding reverb, then re-reversing the effected signal.
  • Shimmer – Reminiscent of a synth pad that follows what your instrument plays, this is version 2 of our shimmer reverb algorithm.
  • Rumble – Rumble creates a low-frequency drone for a deep, cavernous reverb sound. It sounds neat on synths.
  • Octaves – This effect combines the Wet v3 Reverb with a dual octave generator, one up and one down.
  • Wet+Echo – Combines the Wet v3 Reverb with stereo echo.
  • Wet+Detune – This effect adds the Wet v3 Reverb and a detune effect.
  • Bloom – This reverb is based on our Vintage Digital algorithm. It builds more slowly than a typical reverb.
  • Swell – This reverb places a slow-attack, fast-release gate before a Wet v3 Reverb. This emulates placing a volume pedal before a reverb to swell in reverb pads.
  • Infinite Hold – Combines the Wet v3 Reverb with a hold (“freeze”) function.
  • Sustain – Built on the Wet v3 Reverb, Sustain is a magical effect that can be configured as a sustain effect or virtually infinite reverb.
• Accessories

  In the Box

  • ILLUMINE Reverb Pedal
  • Printed User Guide booklet
  • Two 2.5 mm TRS-to-MIDI Adapter Cables
  • Rubber feet
  • Swag bag




  ---

  Other Accessories to Consider (not included)

  • 9 VDC power supply
  • Expression pedal adapter: to 1/4" jack, to 1/4" plug
  • Volume pedal adapter cable
  • 2.5 mm TRS cable to directly connect mini-MIDI jacks (Neuron)
  • 2.5 mm to 3.5 mm MIDI cable for Morningstar MC3: 0.3 m, 1.0 m
  • USB-MIDI adapter for ILLUMINE Preset Manager Software: HiFing, iConnectivity mio 1x1 or mioXC, Roland UM-ONE mk2 are recommended
  • Modern Producer Preset Bank

  *paid links

• Specifications
  Electrical

  Input level	-10 dBV, instrument / consumer line level
  Input impedance	500 kΩ mono | 1 MΩ stereo
  Signal-to-Noise Ratio, A-weighted, engaged or trails bypass	113 dB mono | 110 dB stereo
  Total harmonic distortion	< 0.005%

  *See User Guide for complete specifications.

  Power

  Supply Voltage	regulated 9 V - 12 V DC
  Current consumption	85 mA typical
  Recommended supply current	100 mA or greater
  Connector	center-negative, 5.5 mm OD x 2.1 mm ID



  Physical

  Dimensions	121 x 99 x 62 mm / 4.8 x 3.9 x 2.6 in
  Weight	415 g / 14.6 oz

  *Specifications subject to change without notice.
